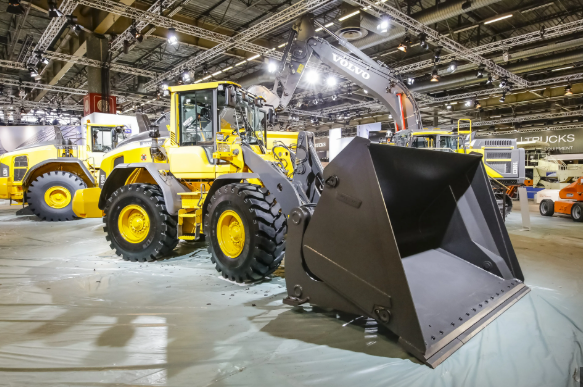

2.3 m³ Bucket Capacity Loader

Weight                         12.95 t                         Standard tyres                         20.5 R25 L2

Bucket capacity            2.3 m³                          Bucket capacity min.                2.3 m³

Transport length          6.05 m                         Transport width                        2.47 m

Transport height          3.28 m                         Travel speed                            44.5 km/h

Max. discharge height  3.87 m                         Lifting force                             86.7 Kn

Model series                L                                  Engine manuf.                         Volvo

Engine type                 D 6 ELBE 3                 Engine power                          126 kW

Displacement               5.7 l                             Revolutions at max torque       1700 rpm
