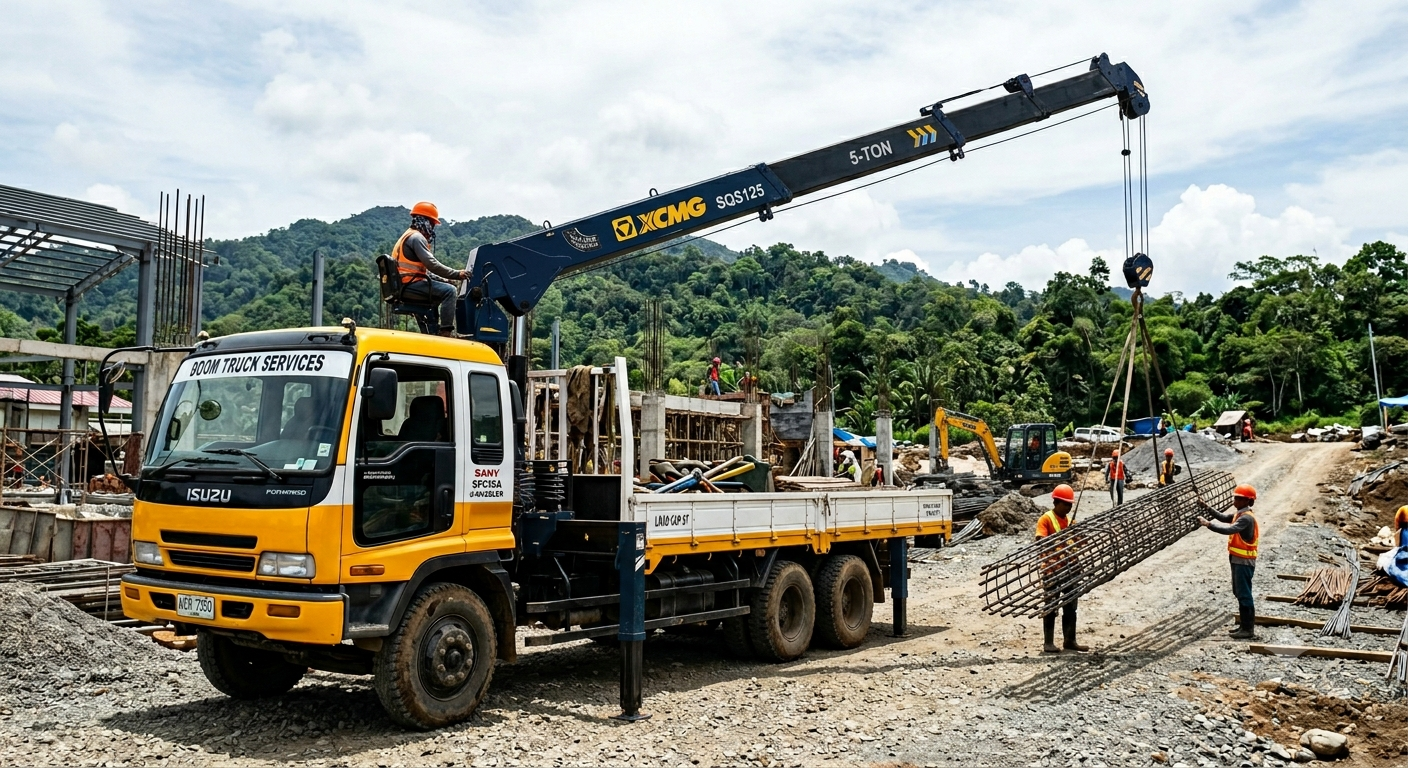

5-Ton Boom Truck

Crane & Lifting Performance

• Max Lifting Capacity: 5,000 kg @ 2.5m operating radius
• Max Rated Lifting Moment: 12.5 t.m
• Boom Configuration: 4-section high-tensile steel telescopic stiff boom  hexagonal profile for high structural rigidity)
• Max Working Reach (Outreach): ~11.6m to 12.5m
• Max Lifting Height: ~13.6m
• Slewing Mechanism: Continuous 360° full rotation at 2.5 r/min speed
• Control Station: High-seat operator column (top control) for maximum site visibility

Truck Chassis & Engine (10-Wheeler)

• Chassis Configuration: 10-Wheeler (6×4 Drive axle configuration)
• Engine Power: ~190 HP to 240 HP heavy-duty turbo-diesel engine
• Cargo Bed Length: ~6.0m to 7.2m drop-side structural steel cargo bed
• Stabilizer Legs (Outriggers): H-type front and rear hydraulic outriggers with a lateral span up to 5.1m for total stability during heavy side lifts

Hydraulics & Safety Features

• Hydraulic System: Open variable displacement system
• Flow rate: 35–50 L/min
• System pressure: 20–28 MPa
• Safety Modules: Over-winding protection system (anti-two-block), load moment indicator (LMI), hydraulic safety valves, and acoustic warning indicators
