| Parameter | XS113E |
|---|---|
| Operating weight（kg） | 10400 |
| Maximum operating weight（kg） | 11000 |
| Front axle weight（kg） | 5400 |
| Rear axle weight（kg） | 5000 |
| Static linear load（N/cm） | 284.4 |
| Operating speed（km/h） | 0~7.5/0~10 |
| Gradeabillty（%） | 40 |
| Minimum turning radius (outer)（mm） | 6800 |
| Minimum ground clearance（mm） | 412 |
| Wheel base（mm） | 3010 |
| Steering angle（o） | ±30 |
| Oscillation angle（o） | ±10 |
| Vibration frequency（Hz） | 32 |
| Nominal amplitude（mm） | 1.8/0.9 |
| Excitation force（kN） | 240/120 |
| Drum diameter（mm） | 1513 |
| Drum width（mm） | 2130 |
| Model | 4BTA3.9-C125 |
| Emission | China stage II |
| Rated power（kW） | 93 |
| Rated speed（r/min） | 2200 |
| Spec. | 23.1-26-12G23TL |
| Ply rating | 12 |
| Air pressure（kPa） | 150-170 |
| Fuel tank（L） | 200 |
| Urea tank（L） | NA |

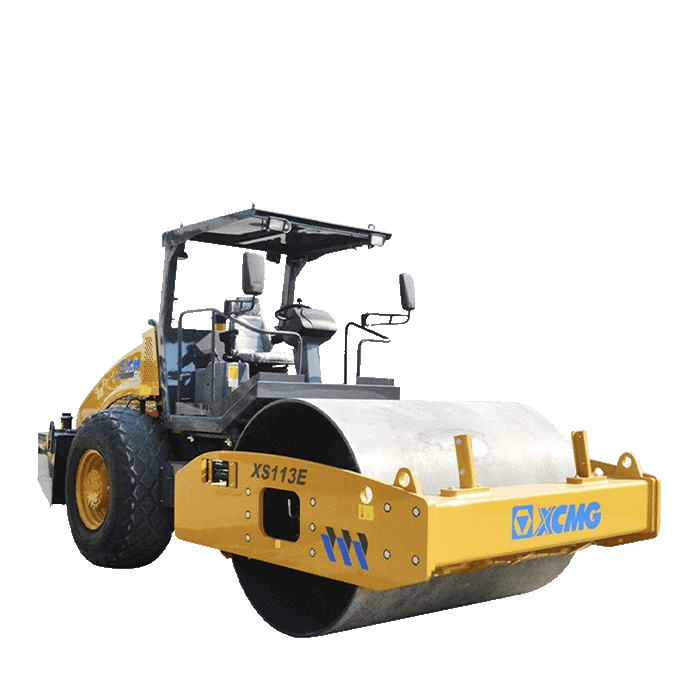

Roller Compactor
XCMG XS113E
The XS113E is a specially designed double-drive, single-drum, full-hydraulic roller. Featuring high excitation force, high compaction efficiency, and good compaction quality, it is widely used in compaction work on the base layer, sub-base layer, and rock fill for forestry roads, railways, highways, airports, harbors, dams, and industrial construction sites.
