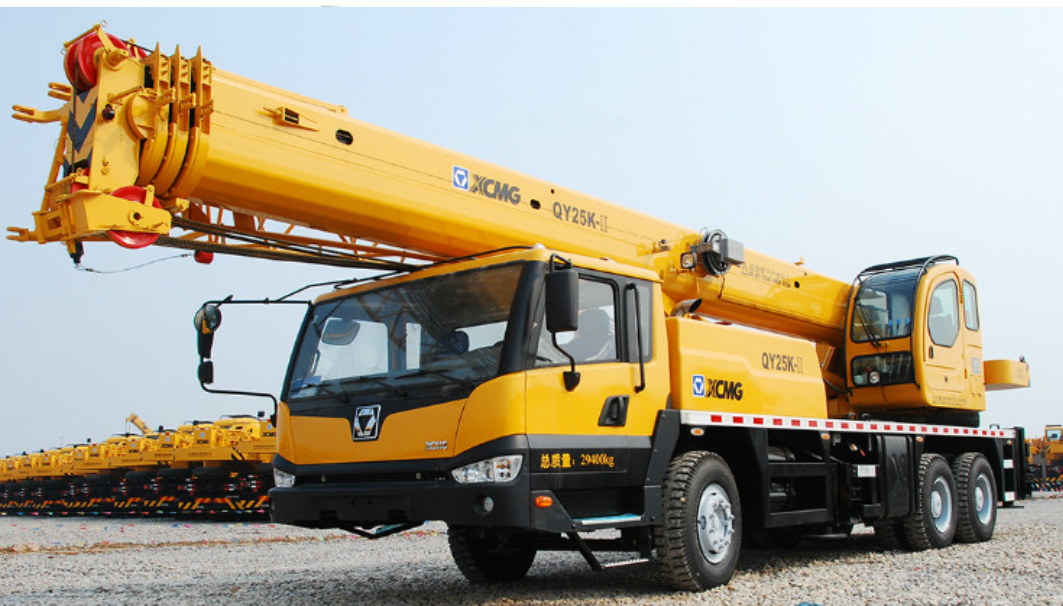

Key Technical Specifications
- Maximum Rated Lifting Capacity: 25 metric tons (at a 3.0-meter radius)
- Base Boom Length: Approx. 10.5 meters to 10.8 meters
- Fully Extended Boom Length: Approx. 34 meters to 41 meters (depending on the specific model variant)
- Maximum Extension with Jib: Up to 42 – 49 meters
- Boom Sections: 4 or 5 sections (U-shaped or dodecagonal high-strength steel)
- Maximum Lifting Torque: 960 – 1,020 kN.m
- Engine Power: Typically powered by a Shangchai or Weichai Euro III/V/VI diesel engine (approx. 206 kW to 213 kW / 280 to 290 HP)
- Drive Configuration: 6 × 4 drive
- Maximum Travel Speed: 80 km/h
- Gross Vehicle Weight: Approx. 31,000 kg to 33,000 kg (in travel configuration)
- Outrigger Span: Approx. 5.1m – 5.4m (Longitudinal) × 6.0m – 6.2m (Lateral)
Key Features
- Hydraulic System: Load-sensitive hydraulic system ensures smooth controls, precise positioning, and energy-saving operations.
- Safety Systems: Equipped with an automatic Load Moment Limiter (LML/LMI), anti-two block, hydraulic safety valves, and pressure indicators.
- Operator Cab: Ergonomic full-dimension driver’s cab and crane operator cab with air conditioning, digital displays, and adjustable seating.
